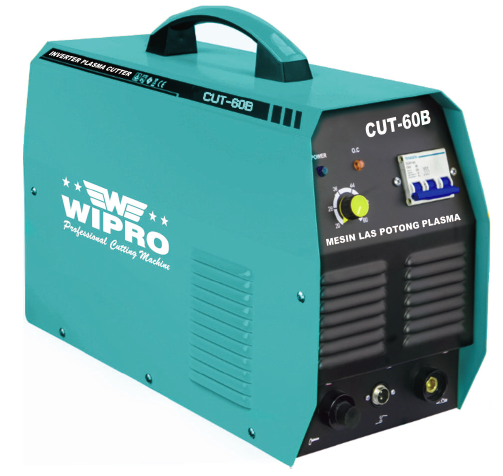

Inverter Plasma Cutter
Model Number
CUT-60B
CUT-100
Data sheets
| Model | CUT-60B | CUT-100 |
| Code | 98253 | 105484 |
| Type | MOS | IGBT |
| Power Voltage | 220V(1PH) 50HZ | 380V~50Hz |
| No-load voltage | 260V | 270V |
| Rated output voltage | 88-104V | 120V |
| Real current range | 20-60A | 20-100A |
| Duty Cycle | 60 | 60 |
| Max cutting thickness | 15MM | 30MM |
| Insulation class | F | F |
| Protection class | IP21S | IP21S |
| Weight | 17kg | 28kg |
| Dimension | 585x320x420mm | 635x365x505mm |
