G209 High Strength Pin Bow Shackle
Forged carbon steel-Quenched and tempered
Breakage test
100% Magnaflux crack detection
Can be Rotated under Non-load Conditions.
Ultinmate Load is 5 times the Working Load Limit
Model Number
WSW-02
WSW-03
WSW-05
WSW-07
WSW-09
Data sheets

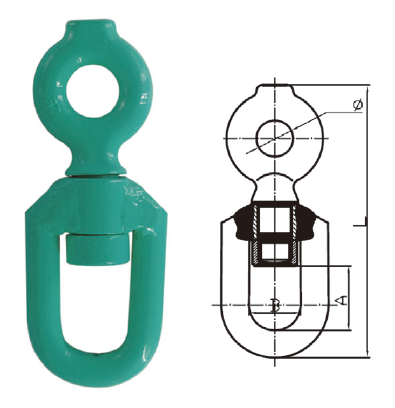

| Model | Code | Weight kg | WLL T | B.L T | A±1.5 | B±1.5 | Φ±1 | L±3 | ||||||||||||||||||||||||||||||||||||||||||||||
| WSW-02 | 93829 | 0.85 | 2.4T | 12 | 32 | 38 | 22 | 154 | ||||||||||||||||||||||||||||||||||||||||||||||
| WSW-03 | 93830 | 1.33 | 3.8T | 19 | 39.1 | 41.5 | 28 | 187 | ||||||||||||||||||||||||||||||||||||||||||||||
| WSW-05 | 93831 | 2.56 | 5.3T | 26.5 | 57 | 48 | 47 | 254 | ||||||||||||||||||||||||||||||||||||||||||||||
| WSW-07 | 93832 | 4 | 7.2T | 36 | 65 | 53 | 37 | 265 | ||||||||||||||||||||||||||||||||||||||||||||||
| WSW-09 | 93833 | 4.9 | 9.0T | 45 | 65 | 51 | 37 | 279 | ||||||||||||||||||||||||||||||||||||||||||||||
