1. Drilling with the matched drill.2. Tapping with the special screw tap for recoil insert marked threadspecification.3. Put recoil insert into mounting groove.4. Press recoil insert gently to roll-in hole,don’t slam the recoil insert in case of dislocation.5. Then put thrust device into recoil insert, get rid of installing shaft with a hammer about 200g.

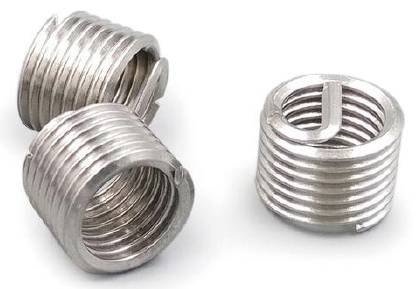

Model Number
Model | Code | No. of Coil | Weight | Q’ty/Box | Q’ty/Ctn |
10X1.0 2D-SP | 108134 | 16.3 | 2.3g | 20pcs | 2500pcs |
10X1.0 3D-SP | 108135 | 25 | 3.5g | 20pcs | 1000pcs |
