Quick Connecting PU Fitting

Features
The main body is the steerable structure, so it enhances the efficiency of laying the pipe.
The specification is different owing to the difference of thread and pipe diameter connected.
There is hex wrench hole inside the PC thread, so it is easily installed even in a narrow place.
There is O-ring or sealant at the thread, so it could be installed directly without sealing treatment.
Specifications
Working Fluid: Air(No other gases or liquids) Working Pressure:0~150PSI(0~10kgf/cm2)
Negative Pressure:-29.5in Hg (-750mmHg) Temperature range:32~140°F (-10~60°C)
Material: PBT+Cu

Model Number

PKB 4-M5

PKB 4-01

PKB 4-02

PKB 6-M5

PKB 6-01

PKB 6-02

PKB 6-03

PKB 6-04

PKB 8-01

PKB 8-02

PKB 8-03

PKB 8-04

PKB 10-01

PKB 10-02

PKB 10-03

PKB 10-04

PKB 12-01

PKB 12-02

PKB 12-03

PKB 12-04

Price Check

Data sheets

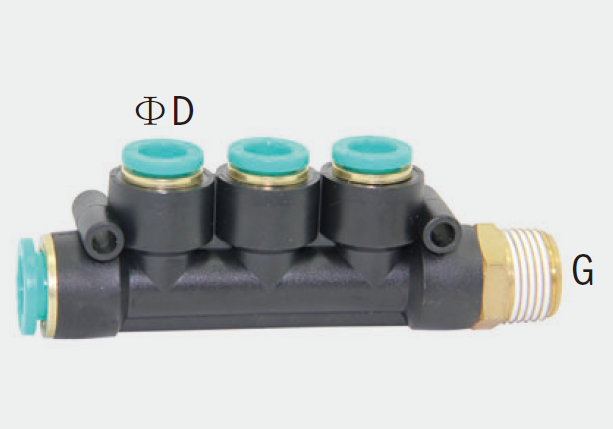

Model	Code	ΦD	G	Q’ty/bag	Q’ty/Box	Q’ty/Ctn
PKB 4-M5	108708	4mm	M5X0.8	10pcs	100pcs	800pcs
PKB 4-01	108709	4mm	1/8	10pcs	100pcs	800pcs
PKB 4-02	108710	4mm	1/4	10pcs	100pcs	800pcs
PKB 6-M5	108711	6mm	M5X0.8	5pcs	100pcs	800pcs
PKB 6-01	108712	6mm	1/8	5pcs	50pcs	400pcs
PKB 6-02	108713	6mm	1/4	5pcs	50pcs	400pcs
PKB 6-03	108714	6mm	3/8	5pcs	50pcs	400pcs
PKB 6-04	108715	6mm	1/2	5pcs	50pcs	400pcs
PKB 8-01	108716	8mm	1/8	5pcs	50pcs	400pcs
PKB 8-02	108717	8mm	1/4	5pcs	40pcs	320pcs
PKB 8-03	108718	8mm	3/8	5pcs	40pcs	320pcs
PKB 8-04	108719	8mm	1/2	5pcs	30pcs	240pcs
PKB 10-01	108720	10mm	1/8	5pcs	30pcs	240pcs
PKB 10-02	108721	10mm	1/4	5pcs	30pcs	240pcs
PKB 10-03	108722	10mm	3/8	5pcs	30pcs	240pcs
PKB 10-04	108723	10mm	1/2	5pcs	20pcs	160pcs
PKB 12-01	108724	12mm	1/8	5pcs	20pcs	160pcs
PKB 12-02	108725	12mm	1/4	5pcs	20pcs	160pcs
PKB 12-03	108726	12mm	3/8	5pcs	20pcs	160pcs
PKB 12-04	108727	12mm	1/2	5pcs	20pcs	160pcs
