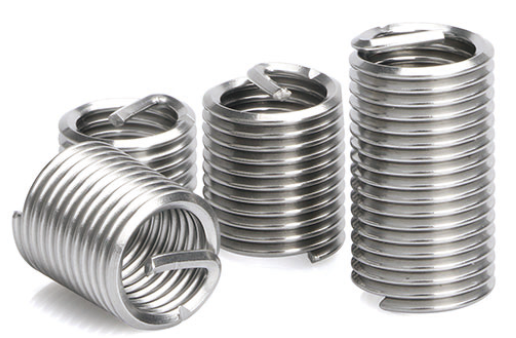

Recoil Insert
1. Drilling with the matched drill.2. Tapping with the special screw tap for recoil insert marked threadspecification.3. Put recoil insert into mounting groove.4. Press recoil insert gently to roll-in hole,don’t slam the recoil insert in case ofdislocation.5. Then put thrust device into recoil insert, get rid of installing shaft with ahammer about 200g.
Model Number
5x0.8 2D
6X1.0 2D
6X1.0 3D
8X1.25 2D
8X1.25 3D
10X1.0 2D
10X1.0 3D
10X1.25 2D
10X1.25 3D
10X1.5 2D
10X1.5 3D
12X1.25 2D
12X1.25 3D
12X1.5 2D
12X1.5 3D
12X1.75 2D
12X1.75 3D
14X1.25 2D
14X1.25 3D
14x1.25x14.4
14X1.5 2D
14X1.5 3D
14X2.0 2D
Data sheets
| Size | Code | No. of Coil |
| 5x0.8 2D | 97363 | 9.7 |
| 6X1.0 2D | 97364 | 9.6 |
| 6X1.0 3D | 97365 | 14.6 |
| 8X1.25 2D | 97366 | 10.6 |
| 8X1.25 3D | 97367 | 16.4 |
| 10X1.0 2D | 97368 | 16.3 |
| 10X1.0 3D | 97369 | 25 |
| 10X1.25 2D | 97370 | 13.1 |
| 10X1.25 3D | 97371 | 20.1 |
| 10X1.5 2D | 97372 | 11.2 |
| 10X1.5 3D | 97373 | 17.2 |
| 12X1.25 2D | 97374 | 15.9 |
| 12X1.25 3D | 97375 | 24.3 |
| 12X1.5 2D | 97376 | 13.5 |
| 12X1.5 3D | 97377 | 20.8 |
| 12X1.75 2D | 97378 | 11.7 |
| 12X1.75 3D | 97379 | 18 |
| 14X1.25 2D | 97380 | 28mm/19 |
| 14X1.25 3D | 97381 | 28.5 |
| 14x1.25x14.4 | 97480 | 9.1 |
| 14X1.5 2D | 97382 | 15.7 |
| 14X1.5 3D | 97383 | 24 |
| 14X2.0 2D | 97384 | 12 |
