Quick Connecting PU Fitting

Features
The main body is the steerable structure, so it enhances the efficiency of laying the pipe.
The specification is different owing to the difference of thread and pipe diameter connected.

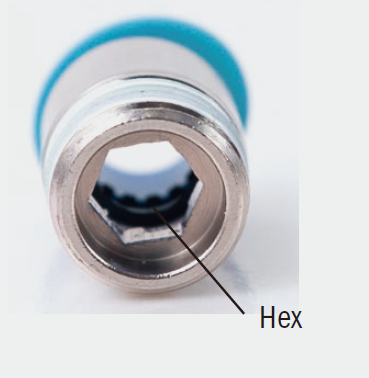

There is hex wrench hole inside the PC thread, so it is easily installed even in a narrow place.
There is O-ring or sealant at the thread, so it could be installed directly without sealing treatment.
Specifications
Working Fluid: Air(No other gases or liquids) Working Pressure:0~150PSI(0~10kgf/cm2)
Negative Pressure:-29.5in Hg (-750mmHg) Temperature range:32~140°F (-10~60°C)
Material: PBT+Cu

Model Number

POC 4-M5

POC 4-01

POC 4-02

POC 6-M5

POC 6-01

POC 6-02

POC 6-03

POC 6-04

POC 8-01

POC 8-02

POC 8-03

POC 8-04

POC 10-01

POC 10-02

POC 10-03

POC 10-04

POC 12-01

POC 12-02

POC 12-03

POC 12-04

POC 14-03

POC 14-04

POC 16-03

POC 16-04

Price Check

Data sheets

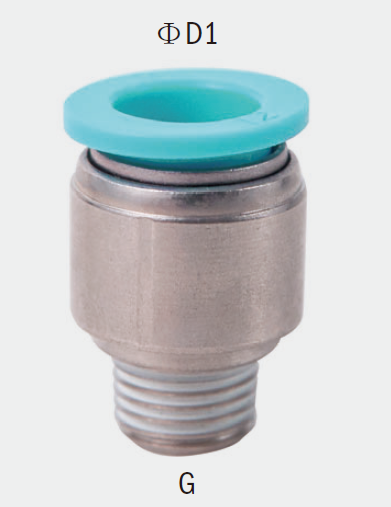

Model	Code	ΦD1	G	Hex	Q’ty/bag	Q’ty/Box
POC 4-M5	108666	4mm	M5X0.8	3mm	10pcs	250pcs
POC 4-01	108667	4mm	1/8	3mm	10pcs	250pcs
POC 4-02	108668	4mm	1/4	3mm	10pcs	200pcs
POC 6-M5	108669	6mm	M5X0.8	4mm	5pcs	200pcs
POC 6-01	108670	6mm	1/8	4mm	5pcs	100pcs
POC 6-02	108671	6mm	1/4	4mm	5pcs	100pcs
POC 6-03	108672	6mm	3/8	4mm	5pcs	100pcs
POC 6-04	108673	6mm	1/2	4mm	5pcs	100pcs
POC 8-01	108674	8mm	1/8	5mm	5pcs	100pcs
POC 8-02	108675	8mm	1/4	6mm	5pcs	100pcs
POC 8-03	108676	8mm	3/8	6mm	5pcs	100pcs
POC 8-04	108677	8mm	1/2	6mm	5pcs	100pcs
POC 10-01	108678	10mm	1/8	5mm	5pcs	100pcs
POC 10-02	108679	10mm	1/4	6mm	5pcs	100pcs
POC 10-03	108680	10mm	3/8	8mm	5pcs	100pcs
POC 10-04	108681	10mm	1/2	8mm	5pcs	100pcs
POC 12-01	108682	12mm	1/8	5mm	5pcs	100pcs
POC 12-02	108683	12mm	1/4	6mm	5pcs	50pcs
POC 12-03	108684	12mm	3/8	8mm	5pcs	50pcs
POC 12-04	108685	12mm	1/2	8mm	5pcs	50pcs
POC 14-03	114823	14mm	3/8	8mm
POC 14-04	114824	14mm	1/2	8mm
POC 16-03	108686	16mm	3/8	8mm	5pcs	50pcs
POC 16-04	108687	16mm	1/2	8mm	5pcs	50pcs
