Quick Connecting PU Fitting

Features
The main body is the steerable structure, so it enhances the efficiency of laying the pipe.
The specification is different owing to the difference of thread and pipe diameter connected.
There is hex wrench hole inside the PC thread, so it is easily installed even in a narrow place.
There is O-ring or sealant at the thread, so it could be installed directly without sealing treatment.
Specifications
Working Fluid: Air(No other gases or liquids) Working Pressure:0~150PSI(0~10kgf/cm2)
Negative Pressure:-29.5in Hg (-750mmHg) Temperature range:32~140°F (-10~60°C)
Material: PBT+Cu

Model Number

PLL 4-M5

PLL 4-01

PLL 4-02

PLL 6-M5

PLL 6-01

PLL 6-02

PLL 6-03

PLL 6-04

PLL 8-01

PLL 8-02

PLL 8-03

PLL 8-04

PLL 10-01

PLL 10-02

PLL 10-03

PLL 10-04

PLL 12-01

PLL 12-02

PLL 12-03

PLL 12-04

PLL-14~03

PLL-14~04

PLL 16-03

PLL 16-04

Price Check

Data sheets

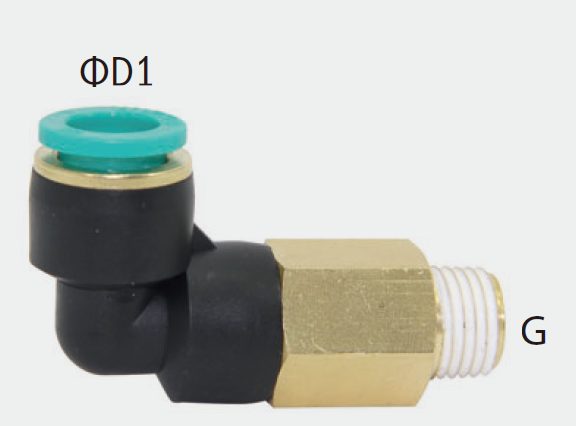

Model	Code	ΦD1	G	Q’ty/bag	Q’ty/Box
PLL 4-M5	108624	4mm	M5X0.8	10pcs	100pcs
PLL 4-01	108625	4mm	1/8	10pcs	100pcs
PLL 4-02	108626	4mm	1/4	10pcs	100pcs
PLL 6-M5	108627	6mm	M5X0.8	5pcs	100pcs
PLL 6-01	108628	6mm	1/8	5pcs	100pcs
PLL 6-02	108629	6mm	1/4	5pcs	100pcs
PLL 6-03	108630	6mm	3/8	5pcs	100pcs
PLL 6-04	108631	6mm	1/2	5pcs	100pcs
PLL 8-01	108632	8mm	1/8	5pcs	50pcs
PLL 8-02	108633	8mm	1/4	5pcs	50pcs
PLL 8-03	108634	8mm	3/8	5pcs	50pcs
PLL 8-04	108635	8mm	1/2	5pcs	50pcs
PLL 10-01	108636	10mm	1/8	5pcs	50pcs
PLL 10-02	108637	10mm	1/4	5pcs	50pcs
PLL 10-03	108638	10mm	3/8	5pcs	40pcs
PLL 10-04	108639	10mm	1/2	5pcs	40pcs
PLL 12-01	108640	12mm	1/8	5pcs	30pcs
PLL 12-02	108641	12mm	1/4	5pcs	30pcs
PLL 12-03	108642	12mm	3/8	5pcs	30pcs
PLL 12-04	108643	12mm	1/2	5pcs	30pcs
PLL-14~03	114815	14mm	3/8	5pcs	20pcs
PLL-14~04	114816	14mm	1/2	5pcs	20pcs
PLL 16-03	108644	16mm	3/8	5pcs	20pcs
PLL 16-04	108645	16mm	1/2	5pcs	20pcs
