Quick Connecting PU Fitting

Features
The main body is the steerable structure, so it enhances the efficiency of laying the pipe.
The specification is different owing to the difference of thread and pipe diameter connected.
There is hex wrench hole inside the PC thread, so it is easily installed even in a narrow place.
There is O-ring or sealant at the thread, so it could be installed directly without sealing treatment.
Specifications
Working Fluid: Air(No other gases or liquids) Working Pressure:0~150PSI(0~10kgf/cm2)
Negative Pressure:-29.5in Hg (-750mmHg) Temperature range:32~140°F (-10~60°C)
Material: PBT+Cu

Model Number

SPG-06~04

SPG-08~04

SPG-08~06

SPG-10~06

SPG-10~08

SPG-12~10

SPG-14~10

SPG-14~12

SPG-16~12

SPG-16~14

Price Check

Data sheets

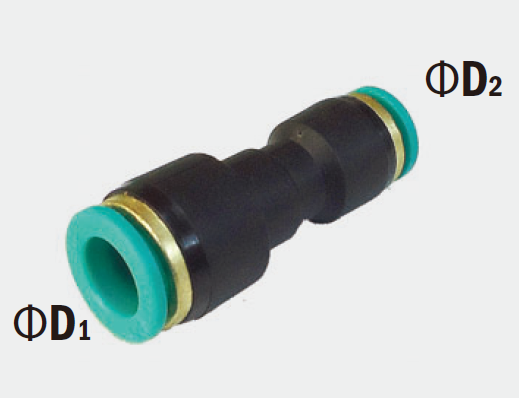

Model	Code	ΦD1	ΦD2
SPG-06~04	75232	6mm	4mm
SPG-08~04	0	8mm	4mm
SPG-08~06	75233	8mm	6mm
SPG-10~06	0	10mm	6mm
SPG-10~08	75234	10mm	8mm
SPG-12~10	75235	12mm	10mm
SPG-14~10	114822	14mm	10mm
SPG-14~12	114428	14mm	12mm
SPG-16~12	75236	16mm	12mm
SPG-16~14	0	16mm	14mm
