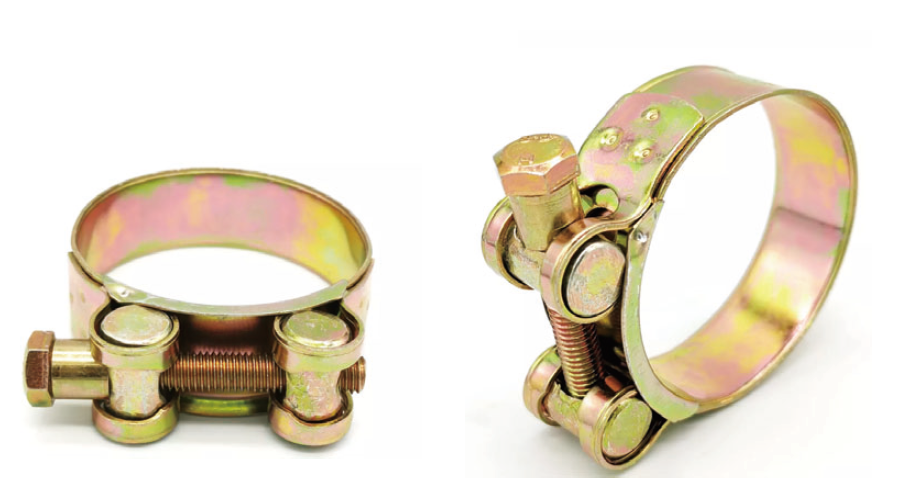

Unitary Clamp

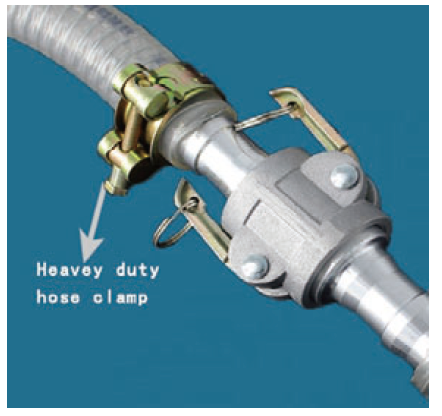

Strong clamps are widely used in automobiles, tractors, forklifts, locomotives, ships, mining,petroleum, chemical, pharmaceutical, agricultural and other water, oil, steam, dust and so on.The hose clamp is tightly locked, tight and has a wide adjustment range.It is suitable for fasteners with soft and hard pipe connections.Material：FeSurface treatment：Zn Finished
Model Number
17-19mm
20-22mm
23-25mm
26-28mm
29-31mm
32-35mm
36-39mm
39-41mm
40-43mm
44-47mm
48-51mm
52-55mm
56-59mm
60-63mm
64-67mm
68-73mm
74-79mm
80-85mm
86-91mm
92-97mm
98-103mm
104-112mm
113-121mm
122-130mm
131-139mm
140-148mm
149-161mm
162-174mm
175-187mm
188-200mm
201-213mm
214-226mm
227-239mm
240-252mm
Data sheets
| Code | Model | Size(mm) | Screw Size | Belt Size | Q’ty/Bag | Q’ty/Ctn | Code | Model | Size(mm) | Screw Size | Belt Size | Q’ty/Bag | Q’ty/Ctn |
| 111238 | CSH-19 | 17-19mm | M6x50 | 0.8x18 | 50PCS | 500PCS | 111245 | CSH-85 | 80-85mm | M8x70 | 1.4x24 | 10PCS | 200PCS |
| 111239 | CSH-22 | 20-22mm | M6x50 | 0.8x18 | 50PCS | 500PCS | 100856 | CSH-91 | 86-91mm | M8x70 | 1.4x24 | 10PCS | 150PCS |
| 100846 | CSH-25 | 23-25mm | M6x50 | 0.8x18 | 50PCS | 500PCS | 111246 | CSH-97 | 92-97mm | M8x70 | 1.4x24 | 10PCS | 150PCS |
| 111240 | CSH-28 | 26-28mm | M6x50 | 0.8x18 | 50PCS | 500PCS | 100857 | CSH-103 | 98-103mm | M8x80 | 1.4x24 | 10PCS | 150PCS |
| 100847 | CSH-31 | 29-31mm | M6x50 | 0.8x18 | 50PCS | 400PCS | 111247 | CSH-112 | 104-112mm | M8x70 | 1.4x24 | 10PCS | 150PCS |
| 100848 | CSH-35 | 32-35mm | M6x50 | 0.8x18 | 50PCS | 400PCS | 100858 | CSH-121 | 113-121mm | M8x80 | 1.4x24 | 10PCS | 100PCS |
| 100849 | CSH-39 | 36-39mm | M6x50 | 0.8x18 | 50PCS | 400PCS | 111248 | CSH-130 | 122-130mm | M8x80 | 1.4x24 | 10PCS | 100PCS |
| 111241 | CSH-41 | 39-41mm | M6x55 | 1.0x20 | 50PCS | 250PCS | 111249 | CSH-139 | 131-139mm | M10x100 | 1.7x26 | 10PCS | 100PCS |
| 100850 | CSH-43 | 40-43mm | M6x55 | 1.0x20 | 50PCS | 250PCS | 100859 | CSH-148 | 140-148mm | M10x100 | 1.7x26 | 10PCS | 100PCS |
| 111242 | CSH-47 | 44-47mm | M6x60 | 1.2x22 | 10PCS | 250PCS | 111250 | CSH-161 | 149-161mm | M10x100 | 1.7x26 | 10PCS | 100PCS |
| 100851 | CSH-51 | 48-51mm | M6x60 | 1.2x22 | 10PCS | 250PCS | 100860 | CSH-174 | 162-174mm | M10x100 | 1.7x26 | 10PCS | 50PCS |
| 111243 | CSH-55 | 52-55mm | M6x60 | 1.2x22 | 10PCS | 250PCS | 111251 | CSH-187 | 175-187mm | M10x100 | 1.7x26 | 10PCS | 50PCS |
| 100852 | CSH-59 | 56-59mm | M6x60 | 1.2x22 | 10PCS | 200PCS | 111252 | CSH-200 | 188-200mm | M10x100 | 1.7x26 | 10PCS | 50PCS |
| 100853 | CSH-63 | 60-63mm | M6x60 | 1.2x22 | 10PCS | 200PCS | 111253 | CSH-213 | 201-213mm | M10x100 | 1.7x26 | 10PCS | 50PCS |
| 100854 | CSH-67 | 64-67mm | M8x60 | 1.4x24 | 10PCS | 200PCS | 100861 | CSH-226 | 214-226mm | M10x100 | 1.7x26 | 10PCS | 50PCS |
| 111244 | CSH-73 | 68-73mm | M8x60 | 1.4x24 | 10PCS | 200PCS | 111254 | CSH-239 | 227-239mm | M10x100 | 1.7x26 | 10PCS | 50PCS |
| 100855 | CSH-79 | 74-79mm | M8x70 | 1.4x24 | 10PCS | 150PCS | 111255 | CSH-252 | 240-252mm | M10x100 | 1.7x26 | 10PCS | 50PCS |
