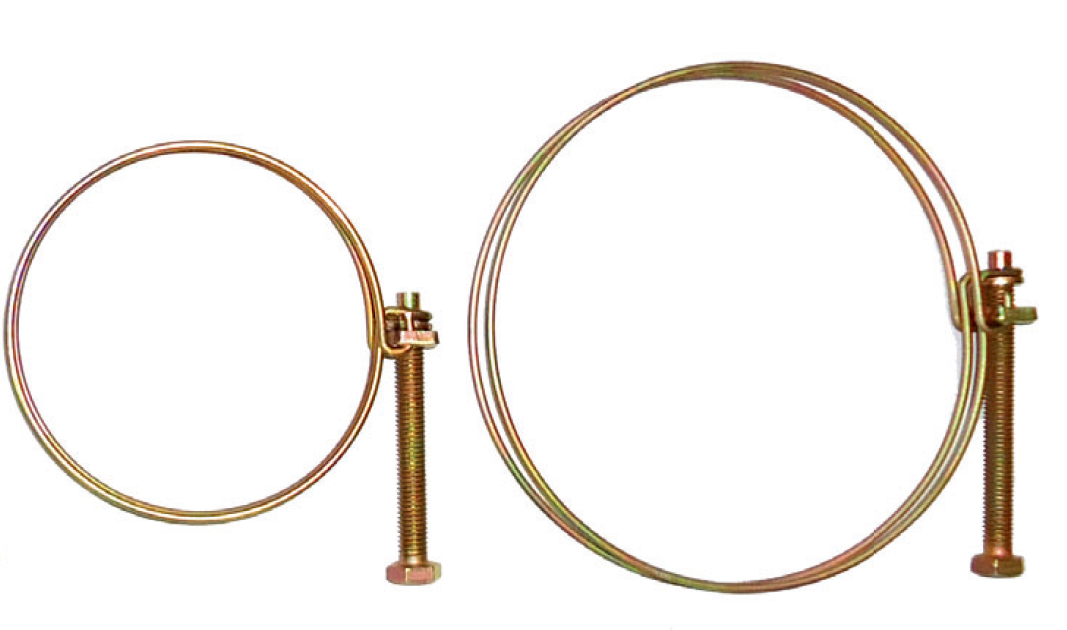

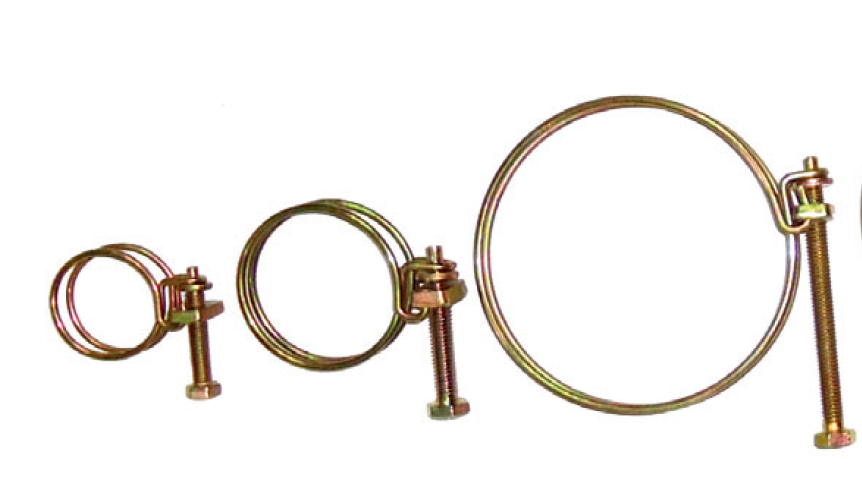

Double Wirses Hose Clamp
All parts are galvanized 70# steel! Stainless Steel are also available!
Model Number
11-14mm
13-16mm
15-18mm
17-20mm
19-22mm
20-24mm
22-26mm
24-28mm
26-30mm
28-32mm
31-35mm
34-38mm
35-40mm
37-42mm
40-45mm
43-48mm
45-50mm
47-52mm
50-55mm
53-58mm
55-60mm
54-62mm
60-65mm
63-68mm
65-70mm
70-75mm
75-80mm
80-85mm
84-90mm
89-95mm
94-100mm
98-105mm
103-110mm
108-115mm
118-125mm
125-130mm
Data sheets
| Model | Code | Wire Dia. | Screw | Range mm | Model | Code | Wire Dia. | Screw | Range mm |
| WP13A1114 | 74185 | 1.5 | M5x30 | 11-14 | WP13A5055 | 2.2 | M6x50 | 50-55 | |
| WP13A1316 | 74186 | 1.5 | M5x30 | 13-16 | WP13A5358 | 74193 | 2.2 | M6x50 | 53-58 |
| WP13A1518 | 74253 | 1.5 | M5x30 | 15-18 | WP13A5560 | 2.2 | M6x60 | 55-60 | |
| WP13A1720 | 74254 | 1.8 | M5x30 | 17-20 | WP13A5462 | 2.2 | M6x60 | 54-62 | |
| WP13A1922 | 74255 | 1.8 | M5x30 | 19-22 | WP13A6065 | 74194 | 2.2 | M6x60 | 60-65 |
| WP13A2024 | 74187 | 1.8 | M5x30 | 20-24 | WP13A6368 | 2.5 | M6x60 | 63-68 | |
| WP13A2226 | 74188 | 1.8 | M5x30 | 22-26 | WP13A6570 | 2.5 | M6x70 | 65-70 | |
| WP13A2428 | 1.8 | M5x30 | 24-28 | WP13A7075 | 74195 | 2.5 | M6x70 | 70-75 | |
| WP13A2630 | 2.2 | M6x40 | 26-30 | WP13A7580 | 2.5 | M6x70 | 75-80 | ||
| WP13A2832 | 74189 | 2.2 | M6x40 | 28-32 | WP13A8085 | 2.5 | M6x70 | 80-85 | |
| WP13A3135 | 74190 | 2.2 | M6x40 | 31-35 | WP13A8490 | 74196 | 2.5 | M8x70 | 84-90 |
| WP13A3438 | 74191 | 2.2 | M6x40 | 34-38 | WP13A8995 | 2.5 | M8x70 | 89-95 | |
| WP13A3540 | 2.2 | M6x40 | 35-40 | WP13A94100 | 74197 | 2.5 | M8x80 | 94-100 | |
| WP13A3742 | 2.2 | M6x40 | 37-42 | WP13A98105 | 2.5 | M8x80 | 98-105 | ||
| WP13A4045 | 2.2 | M6x40 | 40-45 | WP13A103110 | 2.5 | M8x80 | 103-110 | ||
| WP13A4348 | 2.2 | M6x50 | 43-48 | WP13A108115 | 74198 | 2.5 | M8x80 | 108-115 | |
| WP13A4550 | 74192 | 2.2 | M6x50 | 45-50 | WP13A118125 | 74199 | 2.5 | M8x80 | 118-125 |
| WP13A4752 | 2.2 | M6x50 | 47-52 | WP13A123130 | 74200 | 2.5 | M8x80 | 125-130 |
