Analog Meters

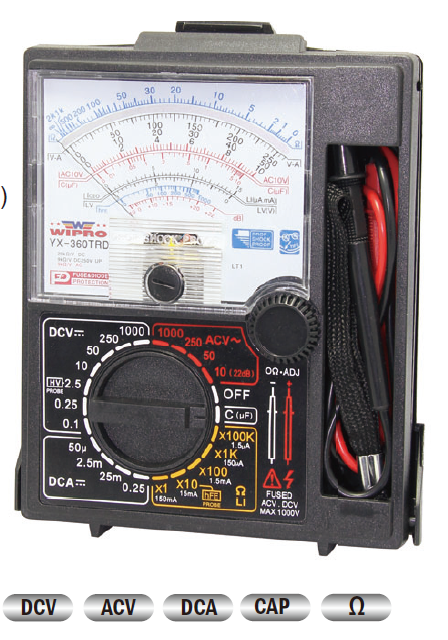

MODEL:YX-360TRD
CODE:71909
DCV: 0.1/0.25/2.5/10/250/1000V, ±(3%+1)
ACV:10/50/250/1000V, ±(4%+1)
DCA: 50μ/2.5m/25m/0.25A, ±(3%+1)
OHM:X1/X10/x1K/X100KΩ,±(3%+1)
CAP: 10μF
hFE:0~1000
Power source: R6(1.5V)x2,
dB:-10dB~+22dB
L1: 1.5μ/150μ/15m/150mA
Dimension:160x125x42mm
Weight: Approx.320g(Including Battery)
Overload protection circuit up to
maximum 230V is provided
